How to Repair a Pipe Using Pipe Repair Clamp?

Description

Reducing Storage For Emergency Ductile Iron Lengthen Type Repair Clamp

Unlimited extension repair is a patch on the basis of the original fixer, and out of product length constraints. Different lengths of store gets into a single length of storage. It is a new kind of products for reducing stock pressure.

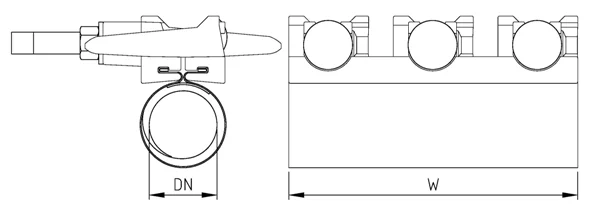

DN(㎜)	Dia.Min - Max(㎜)	PN bar	Length W (㎜)	Bolt M	Torque (Nm)	Type
DN50	59 – 67	16	≥300	14	80	CR-1
DN65	69 – 76	16	≥300	14	80	CR-1
DN80	89 – 99	16	≥300	14	80	CR-1
DN100	108 - 118	16	≥300	16	100	CR-1
DN125	132 - 142	16	≥300	16	100	CR-1
DN150	159 - 170	16	≥300	16	100	CR-1
DN200	218 - 228	16	≥300	16	100	CR-1
DN225	250 - 260	10	≥300	16	100	CR-1
DN250	271 - 281	10	≥300	16	270	CR-1
DN300	325 - 335	10	≥300	16	270	CR-1
DN350	377 - 387	10	≥300	16	270	CR-1
DN400	421 - 440	10	≥500	16	270	CR-2
DN450	468 - 488	10	≥500	16	270	CR-2
DN500	525 - 545	8	≥500	16	270	CR-2
DN600	630 - 650	8	≥500	16	270	CR-2
DN650	670 - 690	8	≥500	16	270	CR-3
DN700	720 - 740	8	≥800	16	270	CR-3
DN750	770 - 800	6	≥800	16	270	CR-3
DN800	820 - 850	6	≥800	16	270	CR-3

Application

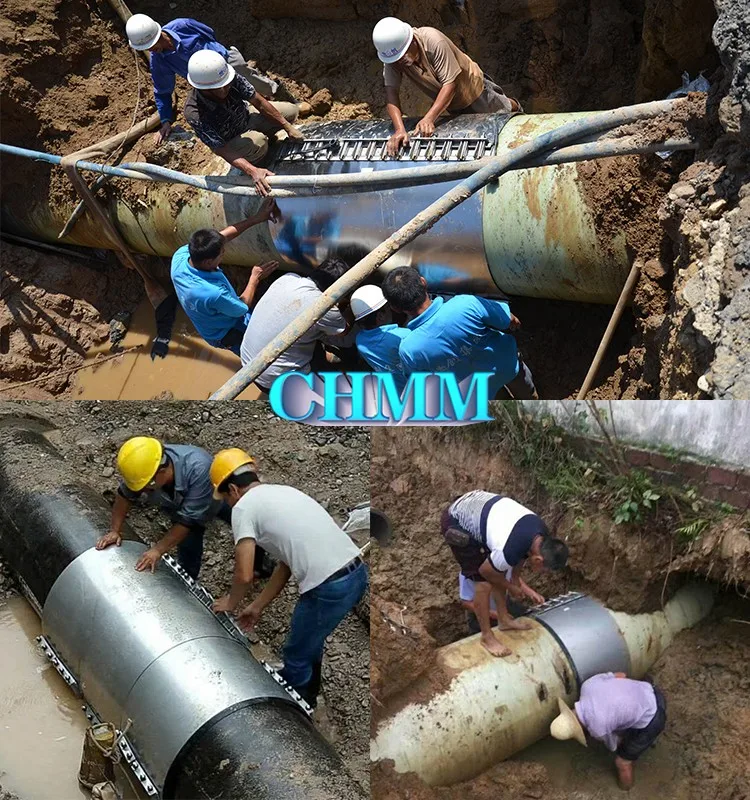

The product sealant plate use unique lap grid structure. For long loopholes in the pipeline, you can directly use multiple repair lap. The grid part can play a role in decompressing the layers of the leakage media. When they are overlapped to form an overall style, the overlapping bevel design facilitates full contact between the two sets of products.It is also convenient for site operators to operate quickly.

Structure

Workshop

Packing

FAQ

Q1: Are you factory or a trading company?

A1: We are a factory in manufacturing and exporting pipe fitting and repair clamp for nearly 10 years.

Q2: How about the  application field of the pipe fitting and repair clamp?

A2: It can use both industry also household, like the surface and underground engineering,ship building/sea oil platform,water/gas supply,power and industrial production,sewage treatment and maintenance etc.

Q3: Do you have any guarantee of the product and the quality?

A3: We can confirm that our products are of reasonable price and good quality. and with 12 months warranty, will refund you in poor quality.

Q4: Could you specially design and produce for clients?

A4: We are factory, we will provide you OEM& ODM service. can make all the details under customer's request.

Q5: Can i get a free sample?

A5: Yes, we can provide you free sample. and you only need to pay the shipping cost.
