2018 New Development Pipeline Repair Clamp Connection Fitting

Description

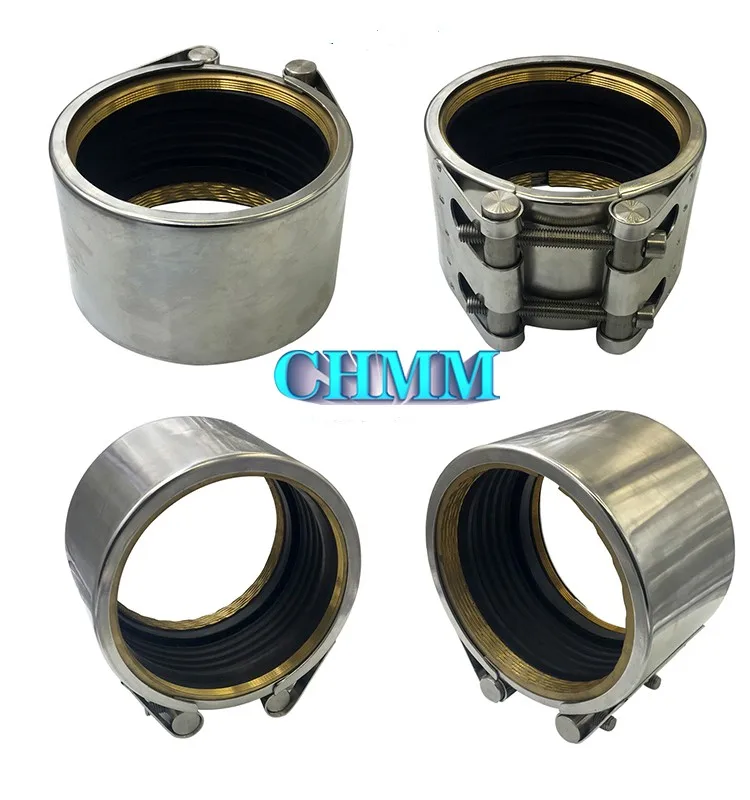

2018 New Development Pipeline Repair Clamp Connection Fitting

Pipe Connection applied to connection of various kinds of metal pipes and composite materials of pipelines.

Pipe coupling connector creates a unique pipeline connection technology with its original design. It breaks through the traditional connection concept, and uses stainless steel and rubber to make components combination device to achieve the sealing and pressure bearing function.

The pipeline connection allowable angular deflection, provide restraint and strong sealing. It can provide safe, fast and steady connection and very good effect of anti-vibration and noise reduction.

As well as the function of distance compensation in pipe ends. Easy to be installed and disassembled and reusable.

The copper ring tooth clamp is suitable for PVC pipe and UPVC pipe.

Model No.	Suitable for outer diameter of pipe (±3mm)	Working Pressure	Width
GF-S-32	38.0 / 40.84 / 42.7	2.5	57
GF-S-40	44.5 / 48.6 / 50.8	2.5	57
GF-S-50	54.05 / 57.0 / 60.5 / 63.5	2.5	80
GF-S-65	66.75 / 68.0 / 73.0 / 76.8	2.5	80
GF-S-80	79.85 / 84.0 / 89.1 / 98.0	1.6	107
GF-S-100	104.0 / 108.27 / 108.0 / 114.3 / 118.0	1.6	107
GF-S-125	129.0 / 133.0 / 139.8 / 141.3	1.6	116
GF-S-150	154.0 / 159.0 / 165.2 / 168.3	1.6	116
GF-S-200	204.0 / 210.3 / 219.0	1.2	155
GF-S-250	254.0 / 267.4 / 273.0	1.2	155
GF-S-300	304.0 / 318.6 / 323.0 / 326.0	1	155
GF-S-350	377.00	1	155
GF-S-400	426.00	1	155

Installation

Multi-functional clamp pipe repair device is mainly used for rapid repair pipeline leaks, you can not stop the pressure, without changing the pipe case, the aging, corrosion caused by pipe hole, fracture and other rapid repair.

Easy installation, high construction efficiency, without special tools to construction operations.

Application

The construction of pipe ends without any treatment, as long as the connector to connect the two set in the pipe end, tighten the bolt side, makes the card tooth clenching pipe end surface to reach the limit fixed, and the sealing sleeve tightly to seal in the pipeline connection firmly locked.

Workshop

Testing

Packing

FAQ

Q1: Are you factory or a trading company?

A1: We are a factory in manufacturing and exporting pipe fitting and repair clamp for nearly 10 years.

Q2: How about the  application field of the pipe fitting and repair clamp?

A2: It can use both industry also household, like the surface and underground engineering,ship building/sea oil platform,water/gas supply,power and industrial production,sewage treatment and maintenance etc.

Q3: Do you have any guarantee of the product and the quality?

A3: We can confirm that our products are of reasonable price and good quality. and with 12 months warranty, will refund you in poor quality.

Q4: Could you specially design and produce for clients?

A4: We are factory, we will provide you OEM& ODM service. can make all the details under customer's request.

Q5: Can i get a free sample?

A5: Yes, we can provide you free sample. and you only need to pay the shipping cost.
