RCE Pvc Pipe Repair Clamp 4inch Pipe Clamp With Epdm Rubber Sleeve High Quality Opening Type Pipe Repair Clamp

Product Description
RCE Pvc Pipe Repair Clamp 4inch Pipe Clamp With Epdm Rubber Sleeve High Quality Opening Type Pipe Repair Clamp

High quality opening type pipe repair clamp has a strong versatility, Rce Pvc pipe repair clamp can be applied to all kinds  non metal pipeline quick connection; has no special requirements for the pipe fluid medium, pipe wall thickness and surface, the product can replace the flange connection or welding cumbersome, can solve the interconnection of different diameters, and axial displacement the angle deviation and different pipes, without special tools to construction operation.
Technical Parameter
Model No.
Suitable for outer diameter of pipe (±3mm)
Working Pressure(MPa)
Testing Pressure(MPa)
Width(mm)
RCE-A-50A
54.05 / 57.0 / 60.5 / 63.5
1.6
2.4
100-600
RCE-A-65A
66.75 / 68.0 / 73.0 / 76.8
1.6
2.4
100-600
RCE-A-80A
79.85 / 84.0 / 89.1 / 98.0
1.6
2.4
100-600
RCE-A-100A
104.0 / 108.27 / 108.0 / 114.3 / 118.0
1.6
2.4
100-600
RCE-A-125A
129.0 / 133.0 / 139.8 / 141.3
1.6
2.4
100-600
RCE-A-150A
154.0 / 159.0 / 165.2 / 168.3
1.6
2.4
100-600
RCE-A-200A
204.0 / 210.3 / 219.0
1.6
2.4
100-600
RCE-A-250A
254.0 / 267.4 / 273.0
1.0
1.5
100-600
RCE-A-300A
304.0 / 318.6 / 323.0 / 326.0
1.0
1.5
100-600
Application

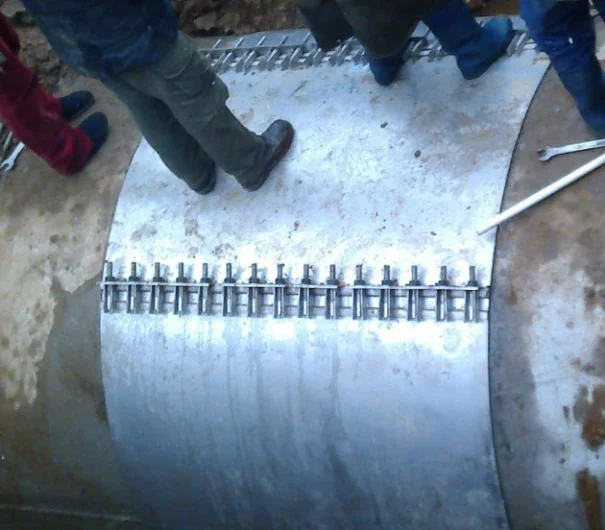

4inch pipe clamp with epdm rubber sleeve is mainly used in the rapid repair of pipeline leakage, can be under pressure, without changing the pipe case, the aging, corrosion caused by pipe trachoma, fracture and other rapid repair, easy installation, high construction efficiency, without special tools Construction operation.

Features

RCE series is the most widely used one,highly optimized for general use.Has few requirements on the ellipticity of pipe arc,safe,convenient and efficient in installation.
Packing & Delivery
Packaging Details Each set is packed separately within plastic protecting film and then loaded into standard wooden cases. Or packed as per customers' requirements

Delivery Time Shipped in 25 days after payment.
Our Certification
FAQ

Q1.Where is your company, factory or trader?
A1.We are Integration of industry and trade which is located in Liaoning Province. China.


Q2.How long is your delivery time ?
A2.Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q3. Can I get free samples?
A3: Yes, we can provide you the free samples, but you need to bear their own delivery costs.

Q4. Can I request to change the form of packaging and transportation?
A4: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.

Q5. How long is your warranty?
A5: Our Warranty is 12 month.
